Synergy 21 LED PLC Serie Underground Light 9W RGB+CCT *Milight/Miboxer*
- Artikel-Nr.: 247906
- Hersteller-Nr.: PLC-RD3
- EAN 4038816002143
- Gewicht 0.989 KG
Downloads
Handbuch_EN
PLC-RD3
9W RGB+CCT LED Underground Light (PLC)
16 million colors for selection, dimmable... mehr
Produktinformationen "Synergy 21 LED PLC Serie Underground Light 9W RGB+CCT *Milight/Miboxer*"
PLC-RD3
9W RGB+CCT LED Underground Light (PLC)
16 million colors for selection, dimmable for rgb& cct& brightness
Brightness and color temperature adjustable
Working with master controller to adjust rgb& cct& brightness& saturation
IP68 waterproof
Features

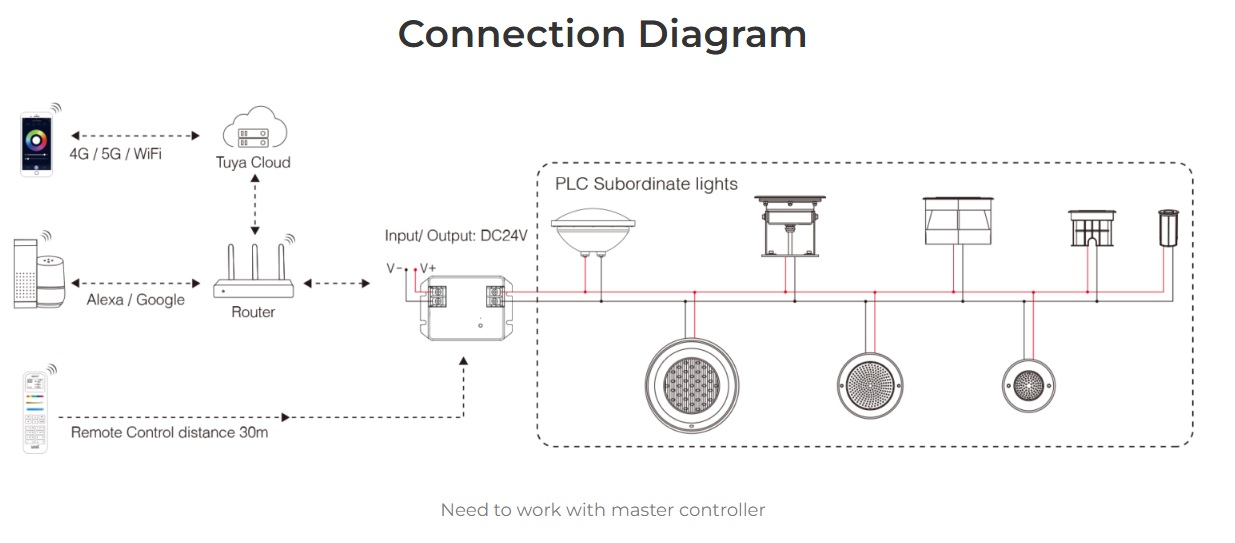

Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping modeetc, support 2.4G remote control as well.
Parameters
- 16 million colors for selection, dimmable for rgb & cct & brightness
- Working with master controller to adjust rgb & cct & brightness& saturation
- 304 stainless steel
- IP68 waterproof
| Product Name: | RGB+CCT LED Underground Light |
|---|---|
| Model No.: | PLC-RD3 |
| Input Voltage: | DC24V |
| Power: | 9W(R, G, B: 3W, CW: 7W, WW: 7W) |
| CRI: | >80 |
| Color temperature: | 2700K~6500K |
| Luminous Flux: | 610LM |
| Luminous efficiency: | 95LM/W |
| Beam Angle: |
| IP Rate: | IP68 |
|---|---|
| Working Temperature: | -10~40? |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC Standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Produktmerkmale:
| Abstrahlwinkel: | 15 |
| Ampere: | 0.375000 |
| Betriebstemperatur: | -10~+40°C |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja, PLC |

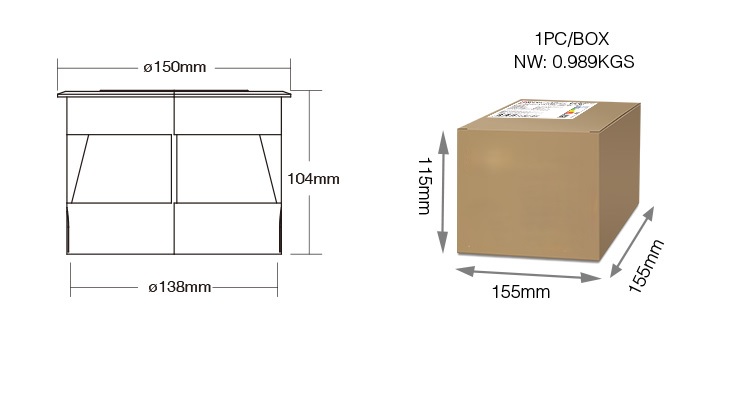

| Grösse: | 150*104 |
| LED - Gehäusefarbe: | silber |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K |
| Lumen: | 610 |
| Lumen-Effizienz: | 95 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 9 |
| schwenkbar: | Nein |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 9 |
| Lumen: | 610 |
| Watt: | 9 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
