Synergy 21 LED DALI 3in1 LED Controller (DT8)*Milight/Miboxer*
- Artikel-Nr.: 252288
- Hersteller-Nr.: DL2
- EAN 4038816157188
- Gewicht 0.084 KG
Downloads
Datenblatt
Datenblatt_EN
Datenblatt_FR
Datenblatt_ES
DL2
DALI 3 in 1 LED Controlle (DT8)
• Support DALI standard protocol IEC62386-102, 207,... mehr
Produktinformationen "Synergy 21 LED DALI 3in1 LED Controller (DT8)*Milight/Miboxer*"
DL2
DALI 3 in 1 LED Controlle (DT8)

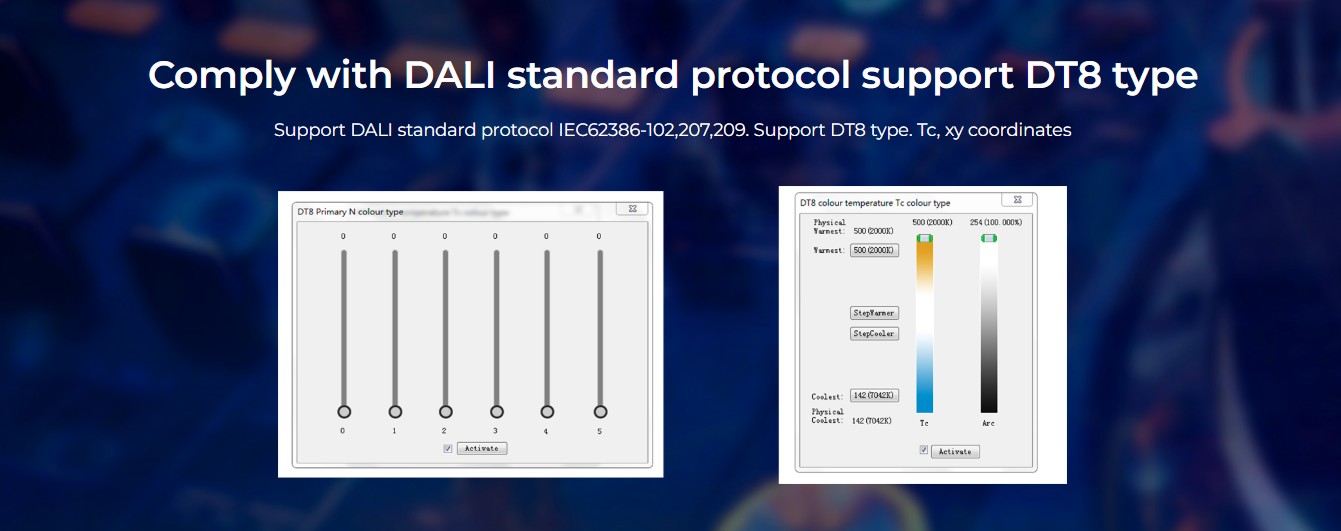

• Support DALI standard protocol IEC62386-102, 207, 209
• Support DT8 type TC, xy coordinates
• Brightness and color temperature adjustable
Features
DL2(DT8) is made by DALI-2 standard IEC62386, it can control brightness and color temperature via multi zones,
wide application for commercial lighting, hotel lighting and home lighting.
- Support DALI-2 standard protocol

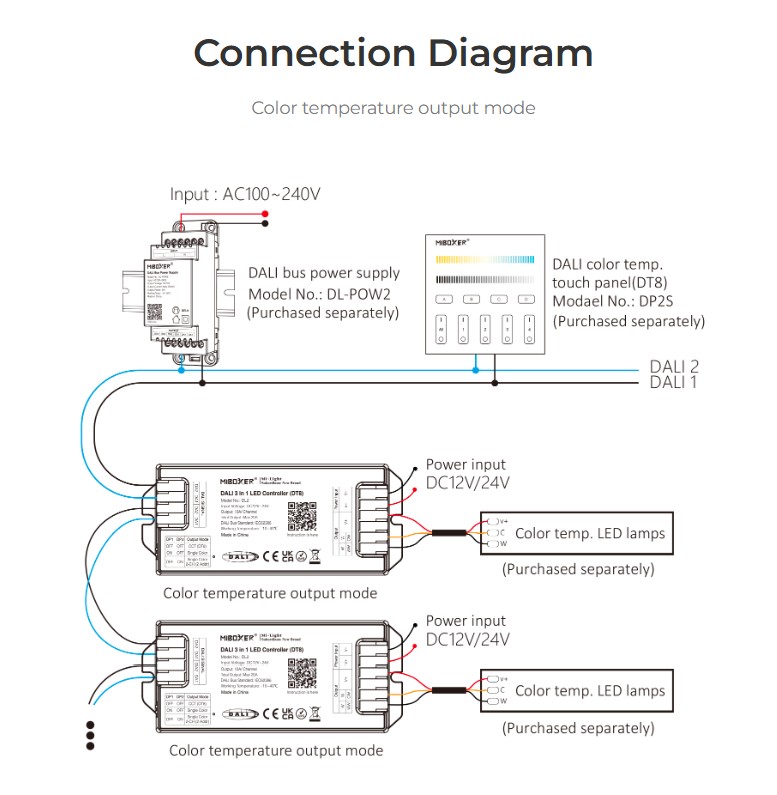

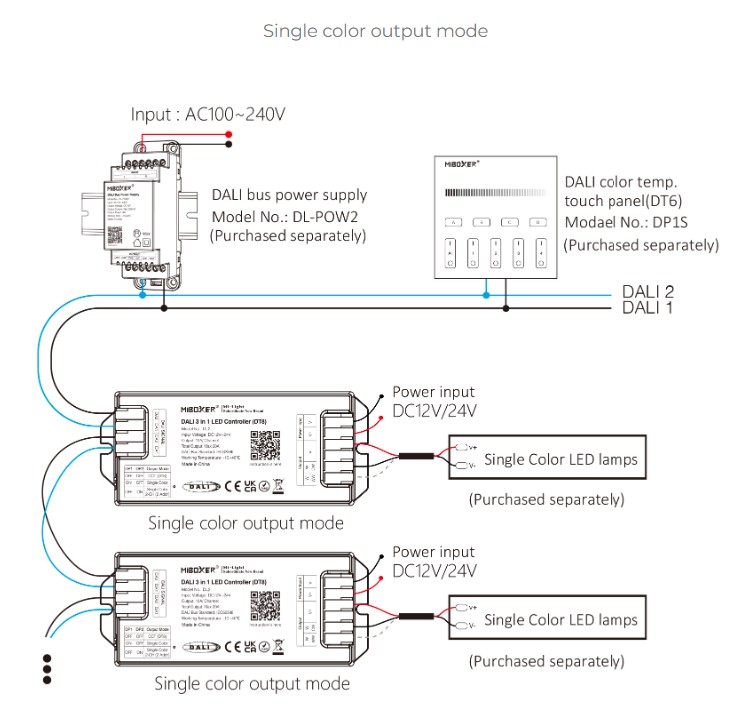

- Three output mode, CCT mode (DT8) / single color mode / Dual channel single color mode ( dual address)
- Dim brightness and color temperature

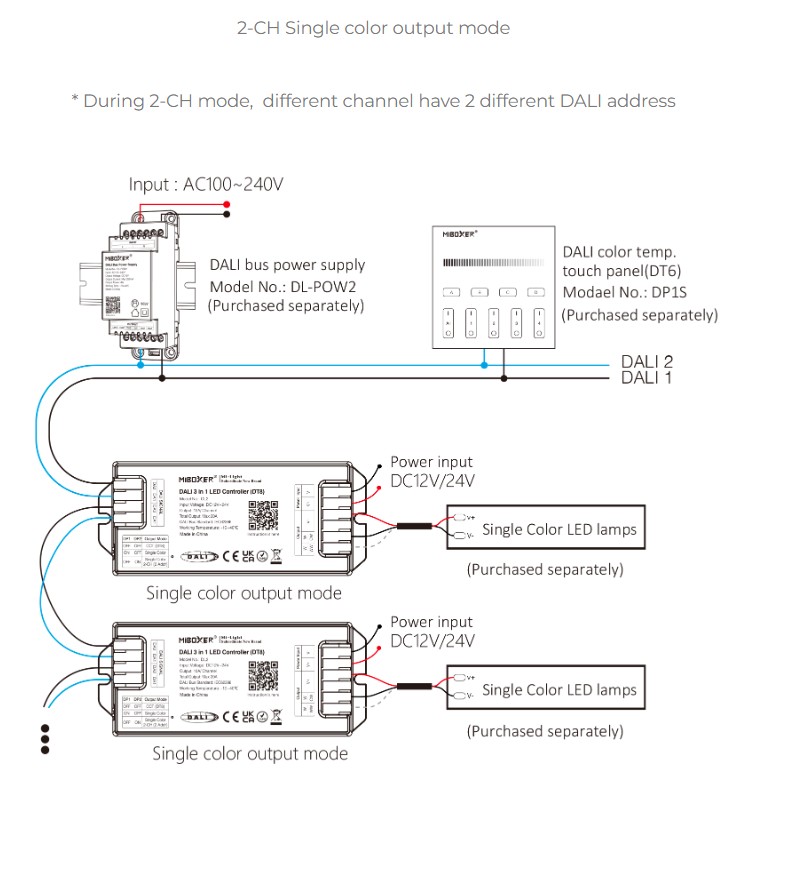

- Support dual output with single color mode ( 1 address for 1 channel)
- Reverse polarity protection, short circuit protection, over current protection and recovery function
Parameters
| Product Name: | DALI 3 in 1 LED Controlle (DT8) |
|---|---|
| Model No.: | DL2 |
| Input Voltage: | DC12-24V |
| Output Current: | 10A/ Single channel |
| Total Output: | Max 20A |
| DALI Standrd: | IEC62386 |
| IP Rating: | IP20 |
| Working Temperature: | -10~40? |
| EMC Standard (EMC): | ETSI EN301 489-1 v2.2.3 (2019-11) ETSI EN301 489-3 v 2.1.1 (2019-03) ETSI EN 301 489-17 v 3.1.1 (2017-02) |
| Safety Standard (LVD): | EN 61347-2-11:2001+A1:2019; EN 61347-1:2015+A1:2018 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Produktmerkmale:
| Ampere: | max 20 |
| CC oder CV: | CV |
| Dimmbar: | DALI |

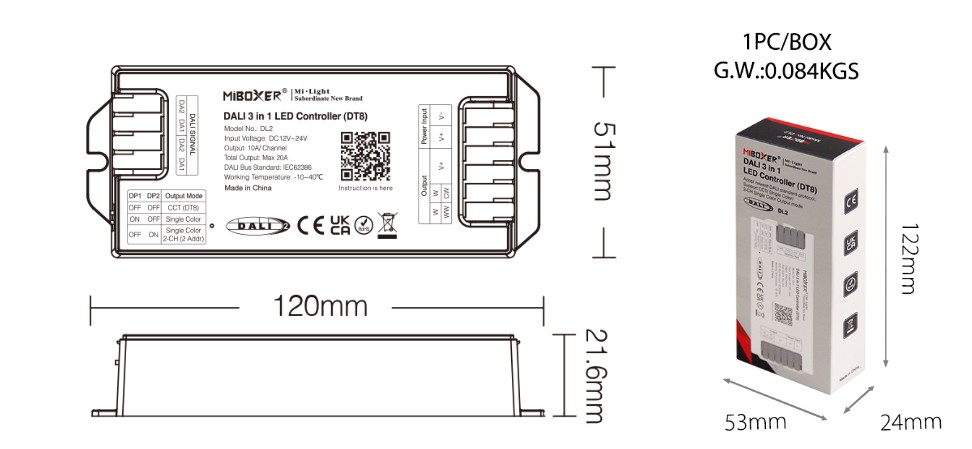

| Grösse: | 120*51*21,6 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäusematerial: | Kunsstoff |
| Lichtfarbe: | single+CCT |
| Volt: | 12/24 |
