- Artikel-Nr.: 252287
- Hersteller-Nr.: SR2-2
- EAN 4038816252289
- Gewicht 0.041 KG
Downloads
Handbuch
Datenblatt
Datenblatt_EN
Datenblatt_FR
Datenblatt_ES

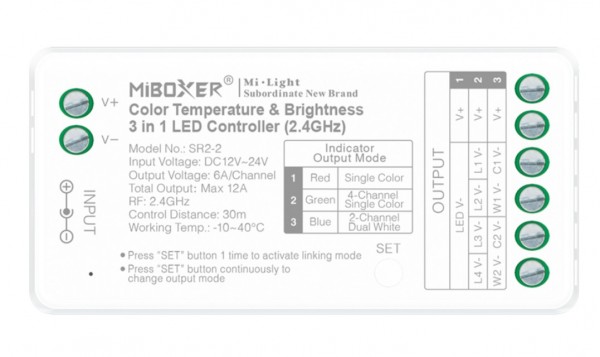

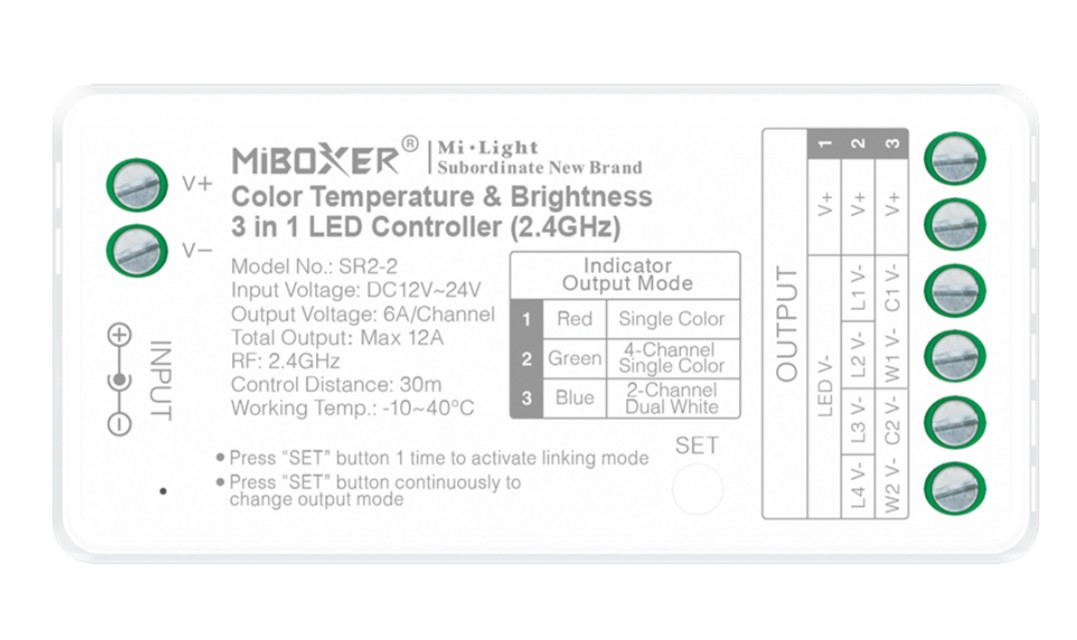

SR2-2
Color Temperature & Brightness 3 in 1 Controller (2.4GHz)
• 2.4G RF Remote... mehr
Produktinformationen "Synergy 21 LED Controller 3in1 (Single+CCT) DC12/24V *Milight/Miboxer*"
SR2-2
Color Temperature & Brightness 3 in 1 Controller (2.4GHz)
• 2.4G RF Remote controllable
• Brightness and color temperature adjustable
• Support PUSH dimming

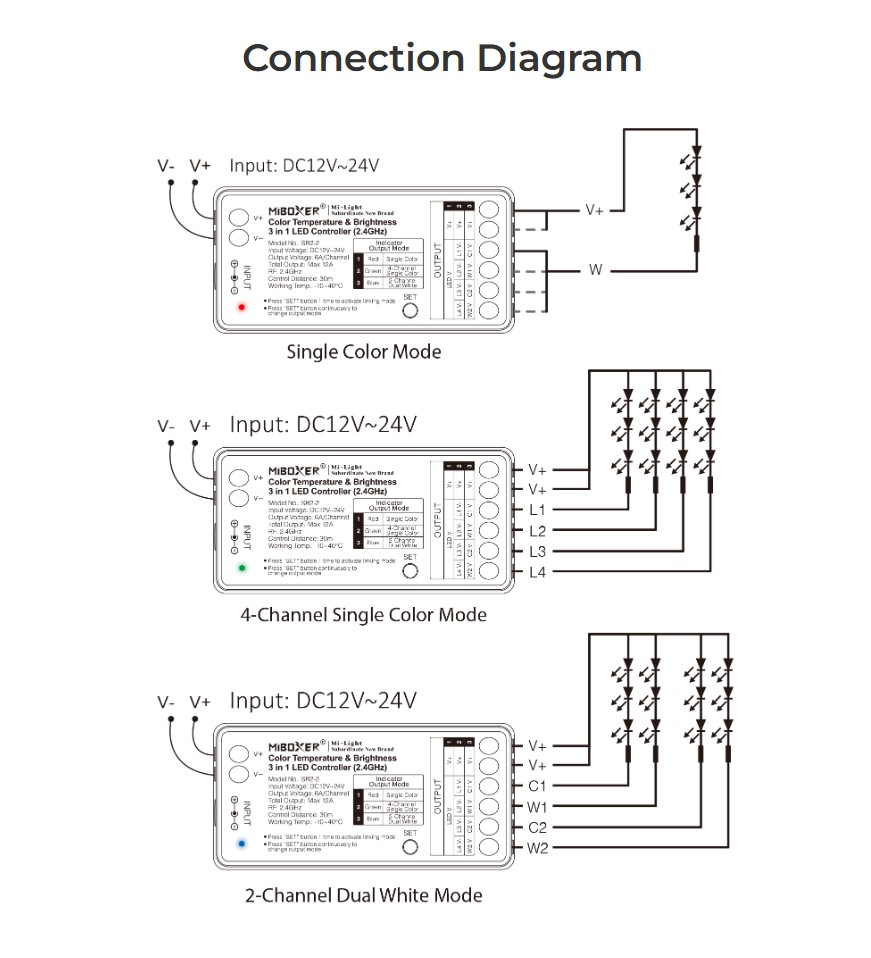

• Switching 3 output mode via one button (4-channel Single color / 2-channel Dual white)
Features

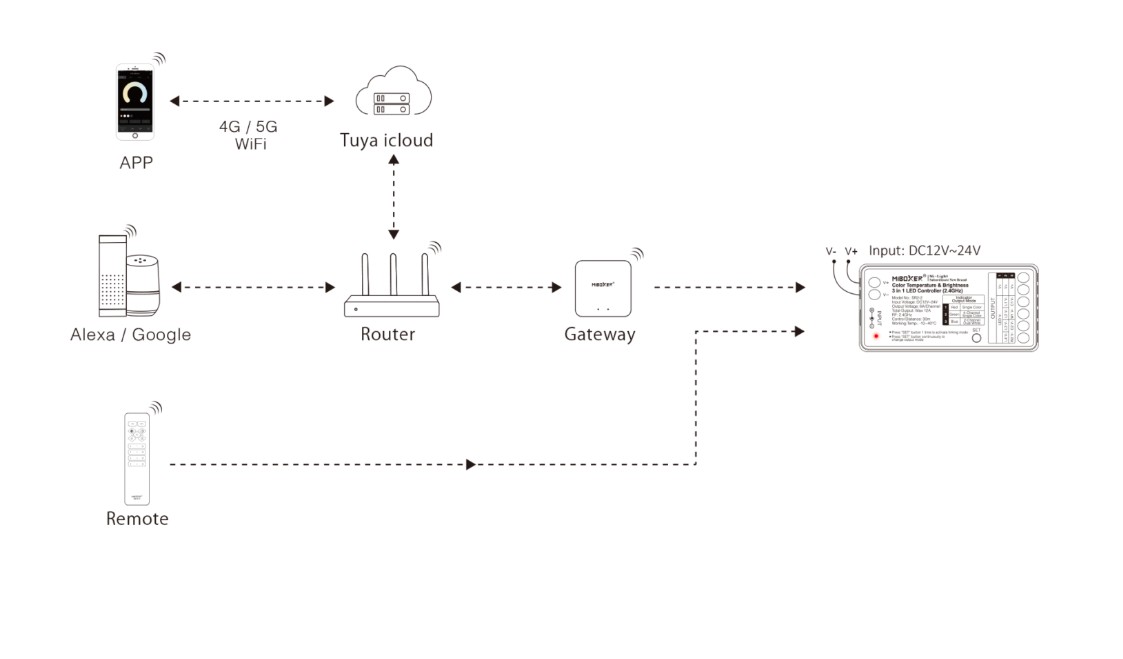

2.4Ghz wireless transmitting and remote control technology with fast transmission, stable signal and anti-interference
Compatible with APP and remote control ( Need 2.4GHz gateway)
Dim brightness and cct, wide application for commercial lighting, hotel lighting and home lighting
- 4-Channel Dim brightness (Master/ Individual control)
- 2-Channel Color temperature Individual control
- Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
- Have DND function, usually used in power failure area and save power
- Support TUYA SMART app control (2.4GHz gateway is needed)
- Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (2.4GHz gateway is needed)
Parameters
| Product Name: | Color Temperature & Brightness 3 in 1 LED Controller (2.4G) |
|---|---|
| Model No.: | SR2-2 |
| Input Voltage: | DC12-24V |
| Output Current: | 6A/ Single channel |
| Total Output: | Max 12A |
| Control Signal: | 2.4GHz RF |
| Control Distance: | 30m |
| IP Rate: | IP20 |
| Dimming Curve: | Logarithmic |
| EMC Standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
Produktmerkmale:
| Ampere: | max 12 |
| CC oder CV: | CV |

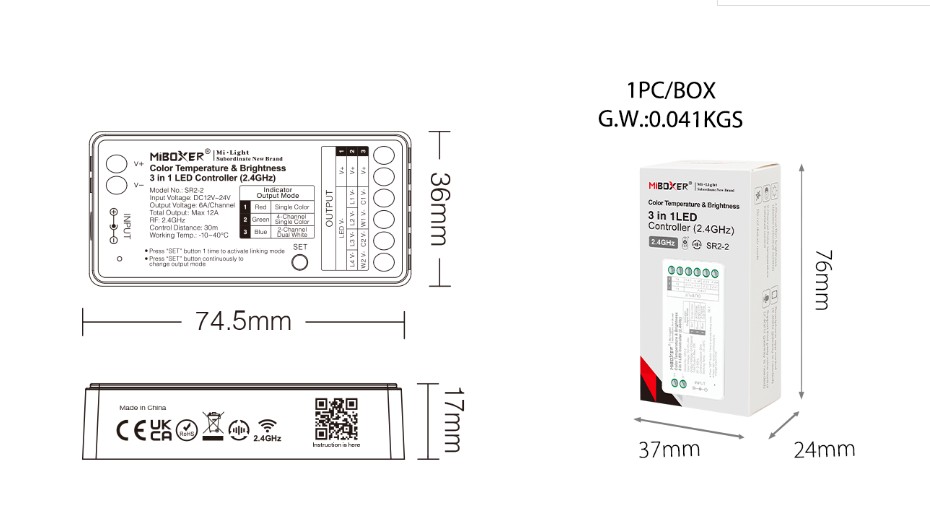

| Grösse: | 74,5*36*17 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäusematerial: | Kunststoff |
| Lichtfarbe: | single+CCT |
| Volt: | 12/24 |
