Synergy 21 LED 48V Track Floodlight 24W RGB+CCT Zigbee 3.0 + 2,4G *Milight/Miboxer*
- Artikel-Nr.: 239746
- Hersteller-Nr.: MF5-24A-ZL V2
Downloads
Handbuch
Handbuch_EN
Handbuch_ES
Handbuch_FR
Datenblatt
Datenblatt_EN
Datenblatt_FR
Datenblatt_ES
24W RGB+CCT Magnetic Floodlight (Zigbee 3.0 + 2.4G)
Passend für die Powergear 48V Schiene, z.B. 233792/233791 oder weitere

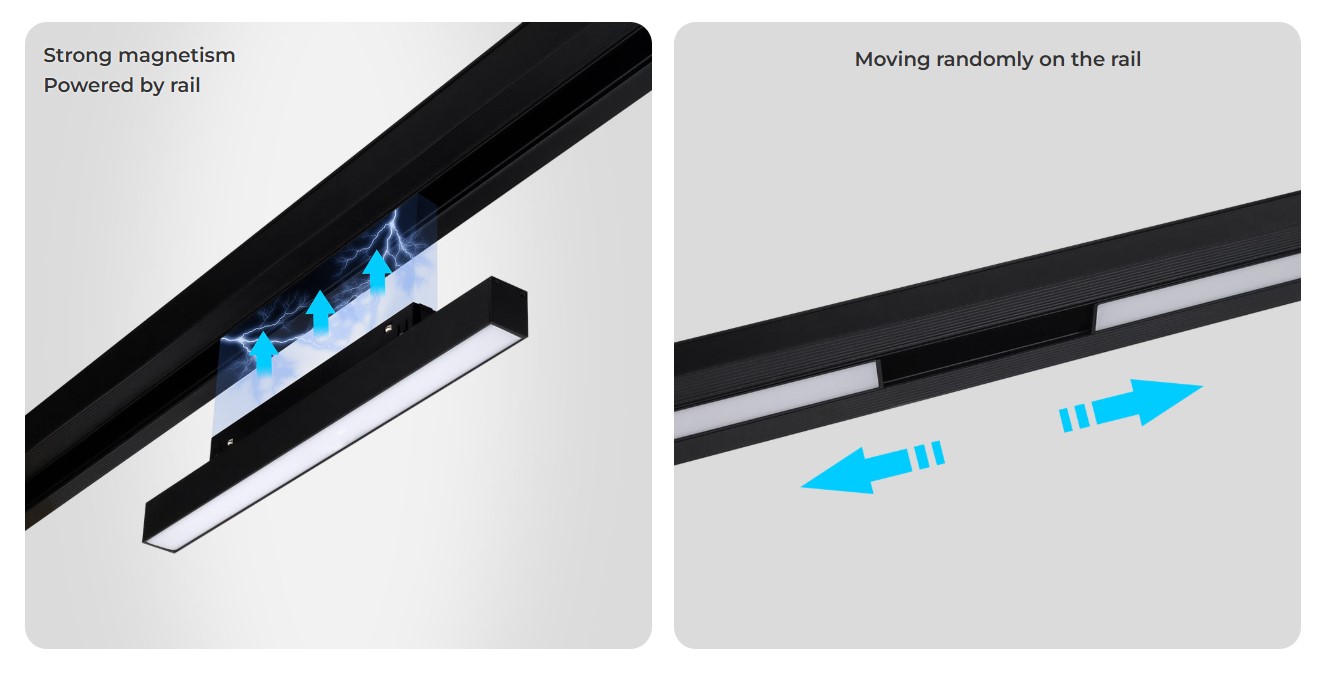

• Powered by rail, strong magnetism
• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 50m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 25m
• Color temperature and brightness adjustable
16 Millions of colors to choose
Product Parameters
Product Name 24W RGB+CCT Magnetic Floodlight (Zigbee 3.0 + 2.4G
Model No. MF5-24A-ZL (Upgraded)
Input Voltage DC48V
Power 24W
PF –
CRI >80
Color Temperature 2700K~6500K
Luminous Flux 1350LM
Luminous Efficiency 60LM/W
Beam Angle 120°
Communication Protocol Zigbee 3.0 + 2.4GHz
Control Distance Zigbee: 50m (open area)
2.4G RF Remote: 25m
IP Rate Not waterproof
Working Temperature -10~40°C
Wireless Technology Zigbee 802.15.4
Zigbee Wireless Frequency 2.400-2.480GHz
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 0,5 |
| Betriebstemperatur: | -10~ +40 |
| CRI: | >80 |
| Dimmbar: | ja |

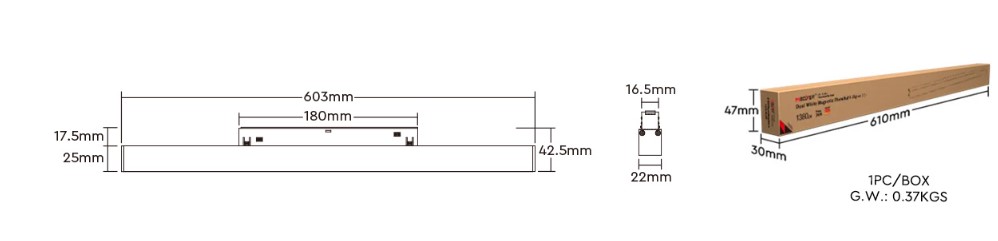

| Grösse: | 603*22*42,5 |
| LED - Gehäusefarbe: | schwarz |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700~6500 |
| Lumen: | 1350 |
| Volt: | 48 |
| Watt: | 24 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 24 |
| Lumen: | 1350 |
| Watt: | 24 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
