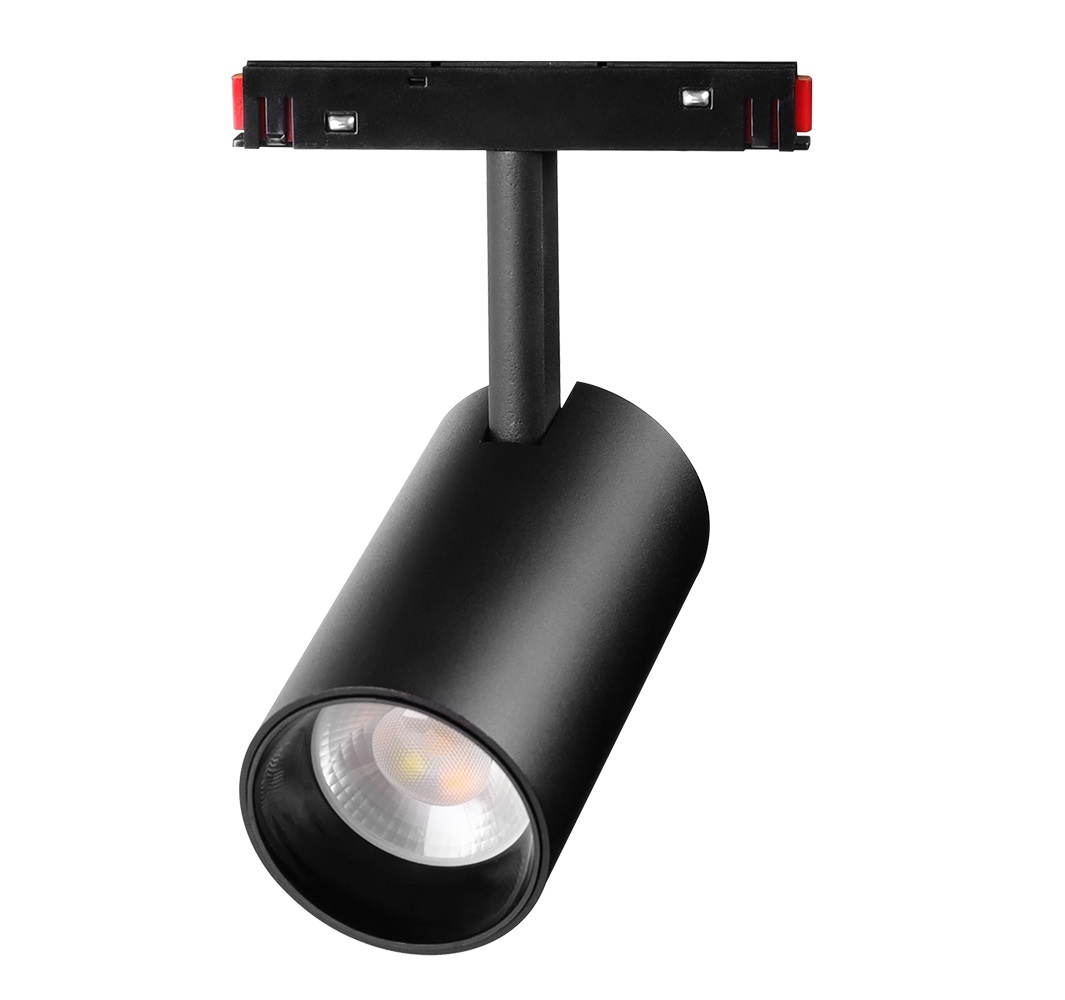

MiBoxer MS5-25B-ZR LED 48V Track Magnetic Spotlight RGB+CCT Zigbee 3.0 + 2.4G 25W
- Artikel-Nr.: 240252
- Hersteller-Nr.: MS5-25B-ZR
- EAN 4038816141538
- Gewicht 0.56 KG
Downloads
Handbuch
Handbuch_EN
Handbuch_ES
Handbuch_FR
Datenblatt_EN
Datenblatt_FR
Datenblatt_ES
Datenblatt
RGB+CCT Magnetic Spotlight 3.0 + 2.4G
Passend für die Powergear 48V Schiene, z.B. 233792/233791 oder weitere

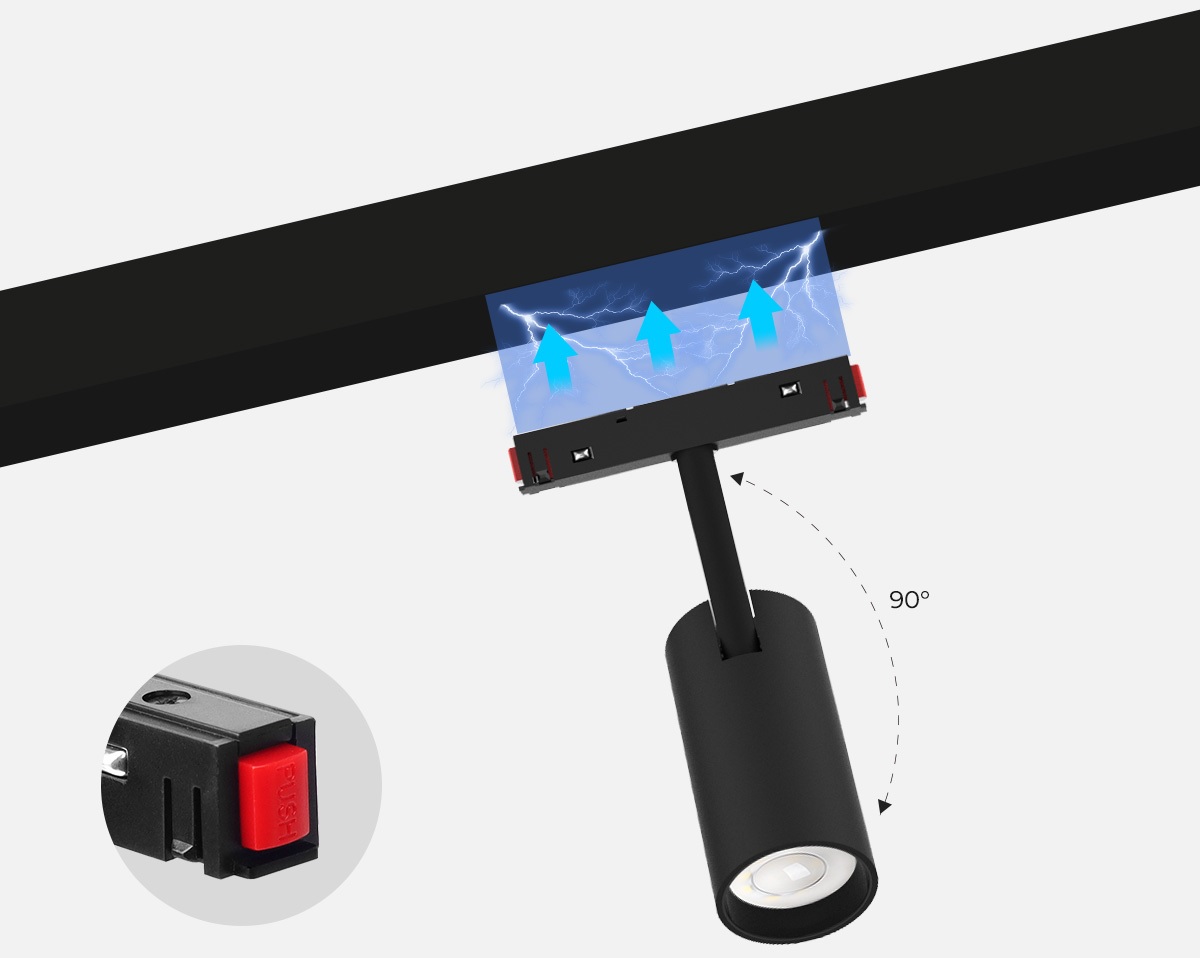

Powered by rail, strong magnetism
Product follow zigbee 3.0 standard protocol
Zigbee Contrl distance: 100m (open area)
Compatible with Mi-Light / MiBoxer 2.4GHz series remote
2.4G RF Remote Control Distance: 30m
16 Millions of colors to choose
Brightness and color temperature adjustable
Product Parameters
Product Name RGB+CCT Magnetic Spotlight (Zigbee 3.0 + 2.4G)
Model No. MS5-25B-ZR
Input Voltage DC48V
Power 25W
PF
CRI >80
Color Temperature 2700K~6500K
Luminous Flux 1800LM
Luminous Efficiency 75LM/W
Beam Angle 60°
Zigbee 3.0 + 2.4GHz
Zigbee: 100m (open area)
2.4G RF Remote: 30m
IP Rate Not waterproof
Working Temperature -10~40°C
Produktmerkmale:
| Abstrahlwinkel: | 36 |
| Ampere: | 0,125 |
| Betriebstemperatur: | -10~ +40 |
| CRI: | >90 |
| Dimmbar: | ja |

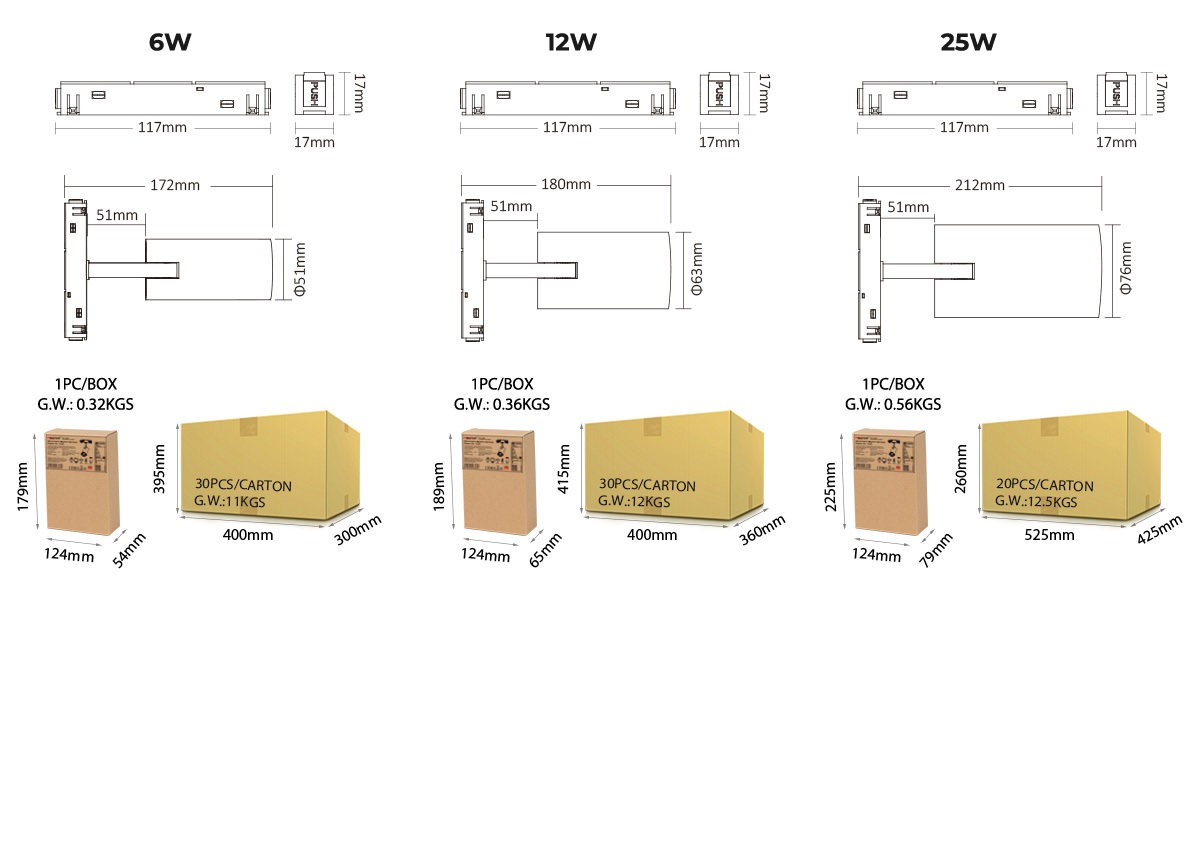

| Grösse: | 212*76 |
| LED - Gehäusefarbe: | schwarz |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700~6500 |
| Lumen: | 1800 |
| Lumen-Effizienz: | 75 |
| Volt: | 48 |
| Watt: | 25 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 25 |
| Lumen: | 1800 |
| Watt: | 25 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
