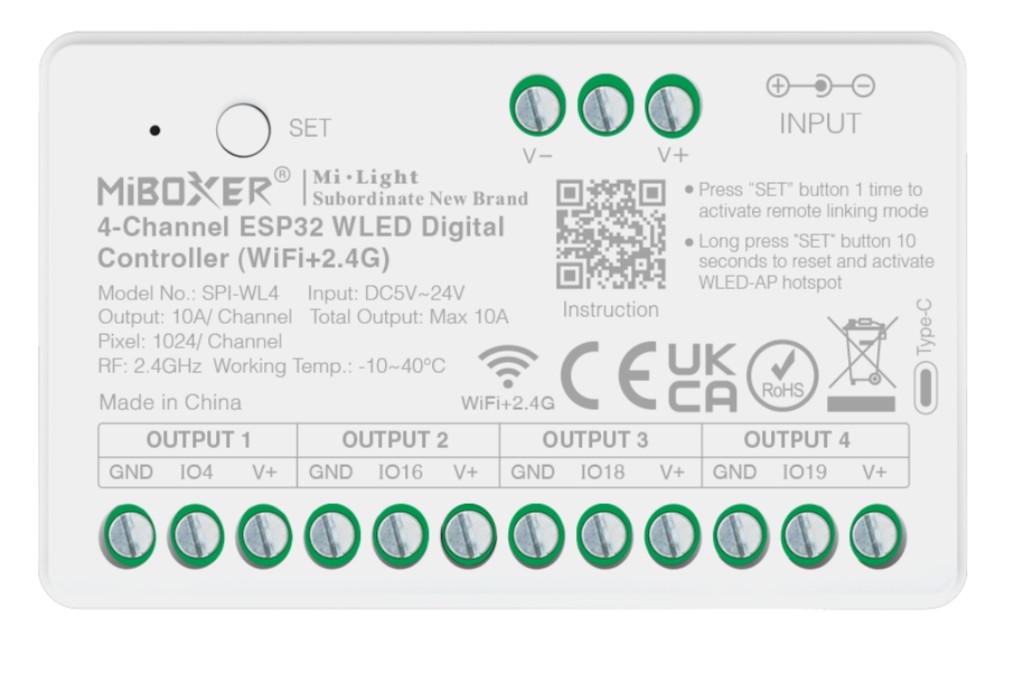

SPI-WL4
4-Channel ESP32 WLED Digital Controller (WiFi+2.4G)

• 4-Channel SPI Controller

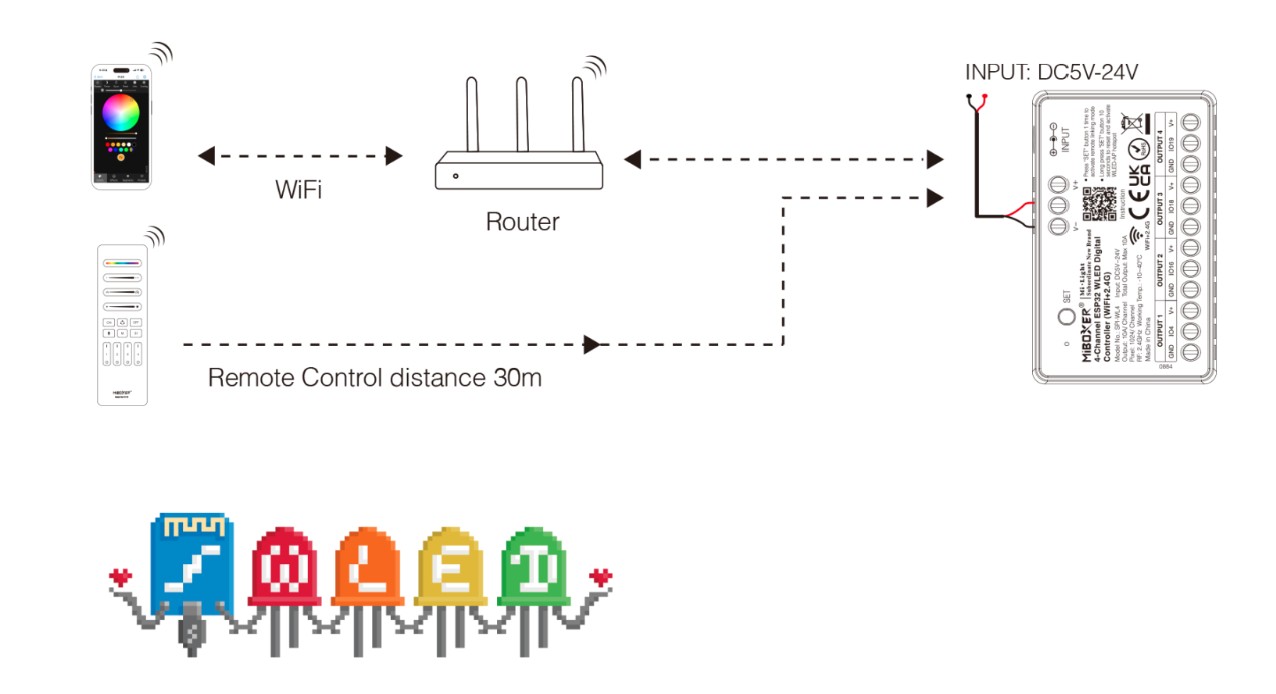

• Support WiFi+2.4G wireless transmitting technology
• Built in SPI protocol

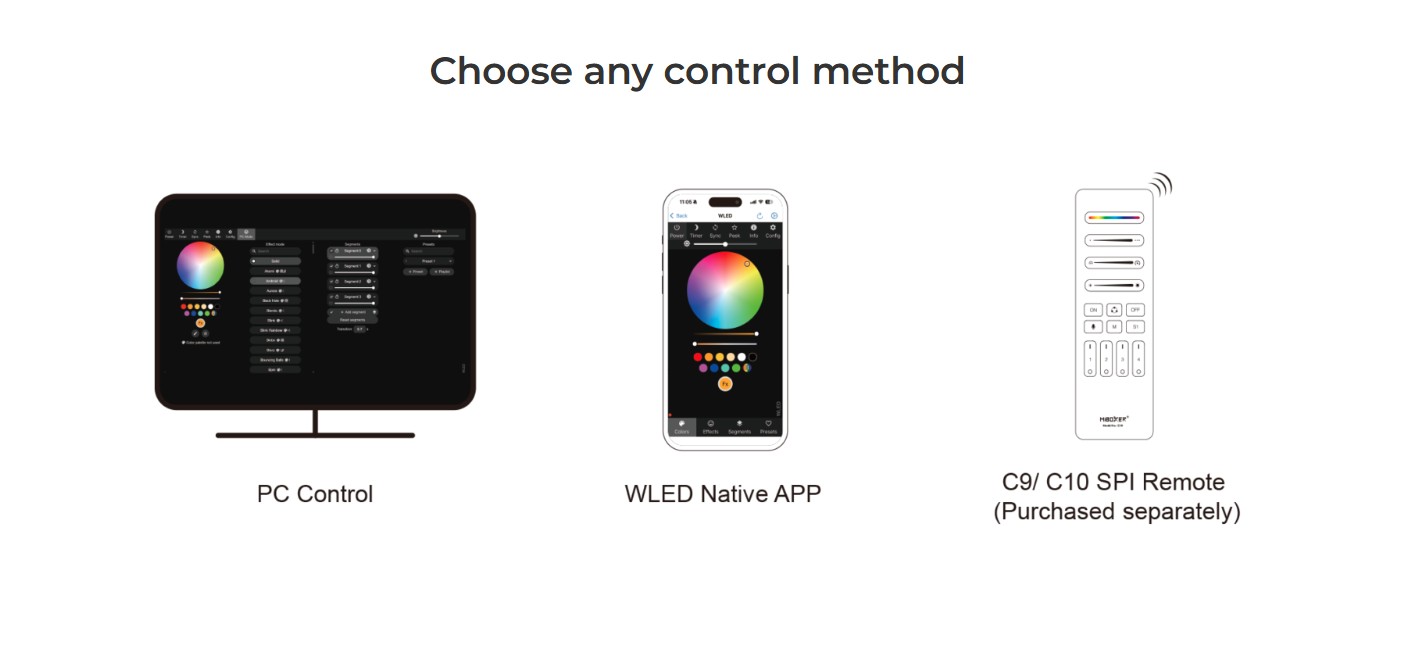

• Adjust different modes, color, brightness and change dynamic illumination

Features

SPI-WL4 4-Channel ESP32 WLED Digital Controller (WiFi+2.4G) , compatible with DC5-24V input, specially designed for SPI LED srtrip, support WiFi+2.4GHz wireless technology, It can change dynmaic color, brightness, select dynamic mode and have music function.

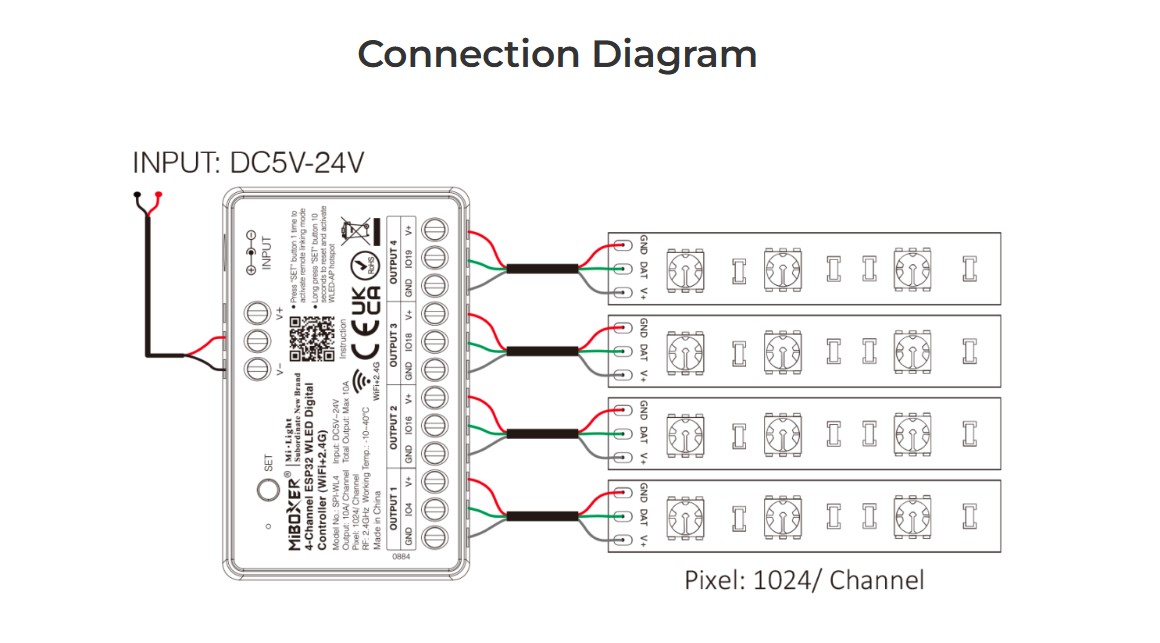

• 4 individual output and control 4 zone SPI led strip independently
• Pixel Dots: Max 1024/ Channel
• Output Signal :SPI(TTL) 800Kbs
• Compatible with single color/CCT/ RGB/ RGBW/ RGB+CCT SPI LED strip light
• Color, pixel dots, speed, static and dynamic mode, music mode are adjustable
• Dynamic mode : 28 kinds of white color, 80 kinds of colorful modes,
• Support to change color, brightness, deepth, speed of all modes
• 4 kinds of music mode, built in internal microphone and smart phone microphone catch signal
• Freely switch dynamic or static or music mode
• Setting boot animation via Tuya Smart App
• Have DND mode and usual used in power failure area to save power.

Compatible chips

WS281X, SK6812/WS2814(RGBW), TM1814, 400kHz,TM1829, USC8903, APA106/P L9823, TM1914, FW1906(GRBCW), USC8904(RGBW), SW2805(RGBCW), SM16825(RGBCW), SW2811(White), WS281X(WWA), APA102, LPD8806, LPD6803, PP9813

Parameters
