- Artikel-Nr.: 247913
- Hersteller-Nr.: PLCW1
Downloads
Handbuch
PLCW1

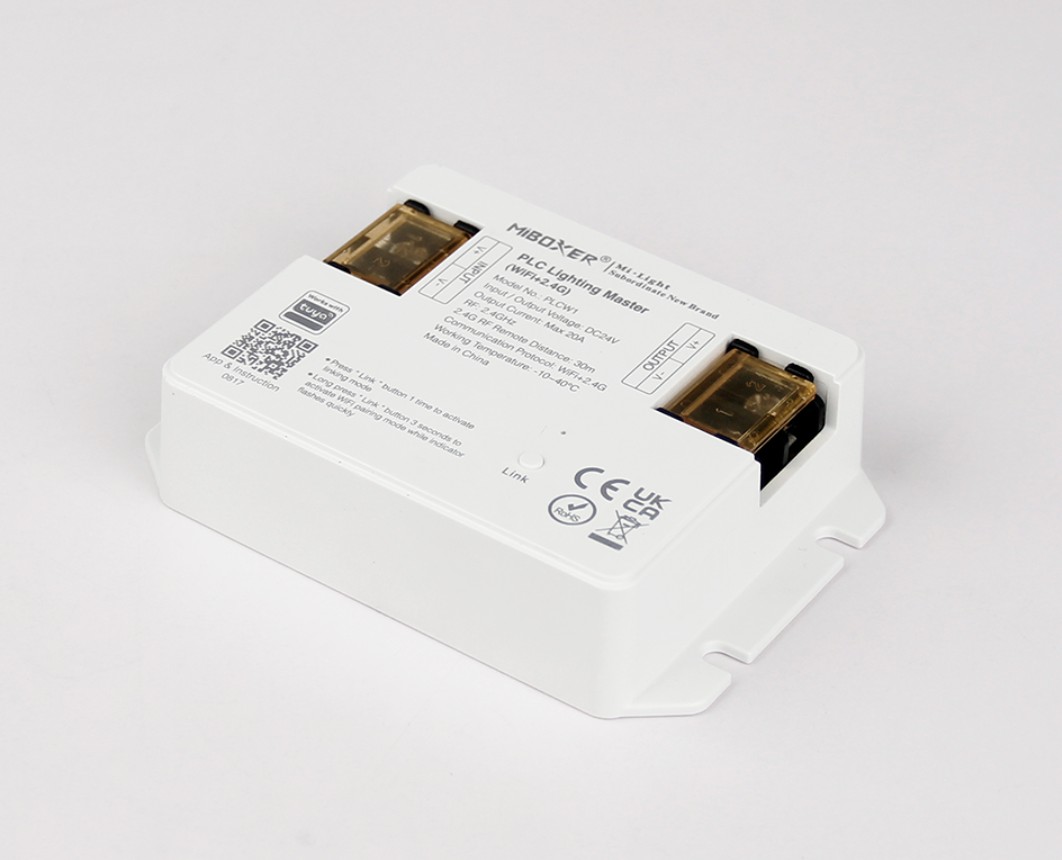

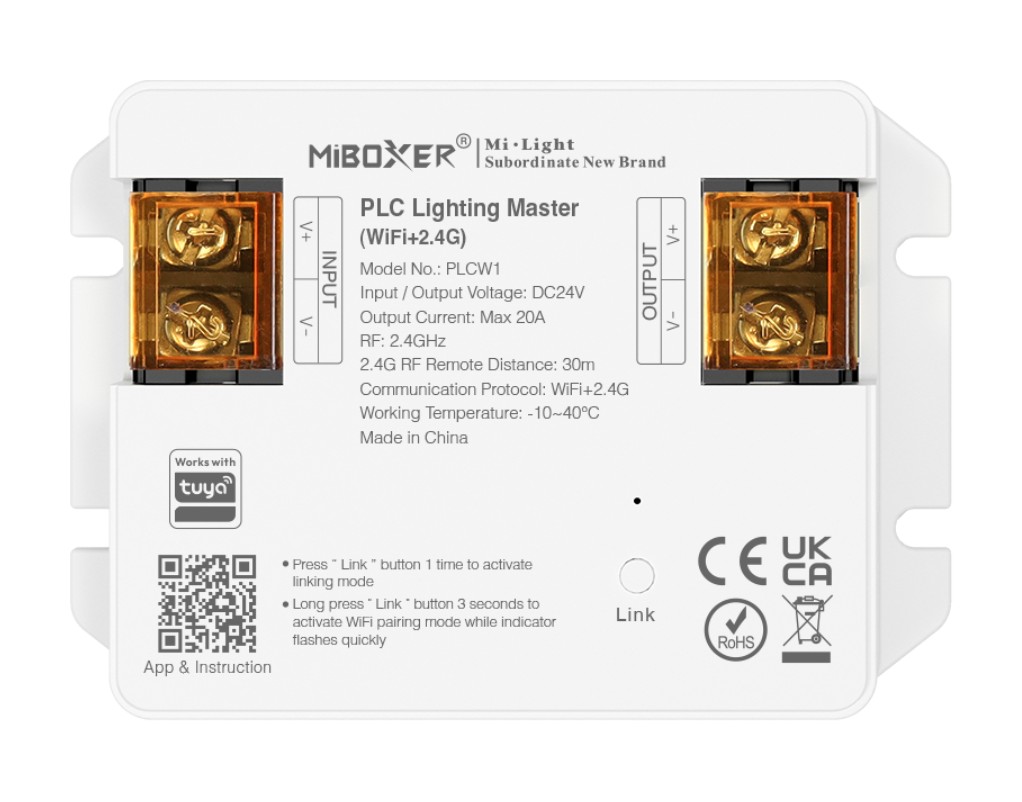

PLC Lighting Master (WiFi+2.4G)
·designed by PLC control solution, simple wiring... mehr
Produktinformationen "Synergy 21 LED PLC Serie PLC Lighting Master Controller WiFi + 2,4G*Milight/Miboxer*"
PLCW1
PLC Lighting Master (WiFi+2.4G)
·designed by PLC control solution, simple wiring diagram
·TUYA SMART APP remote control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc
Features

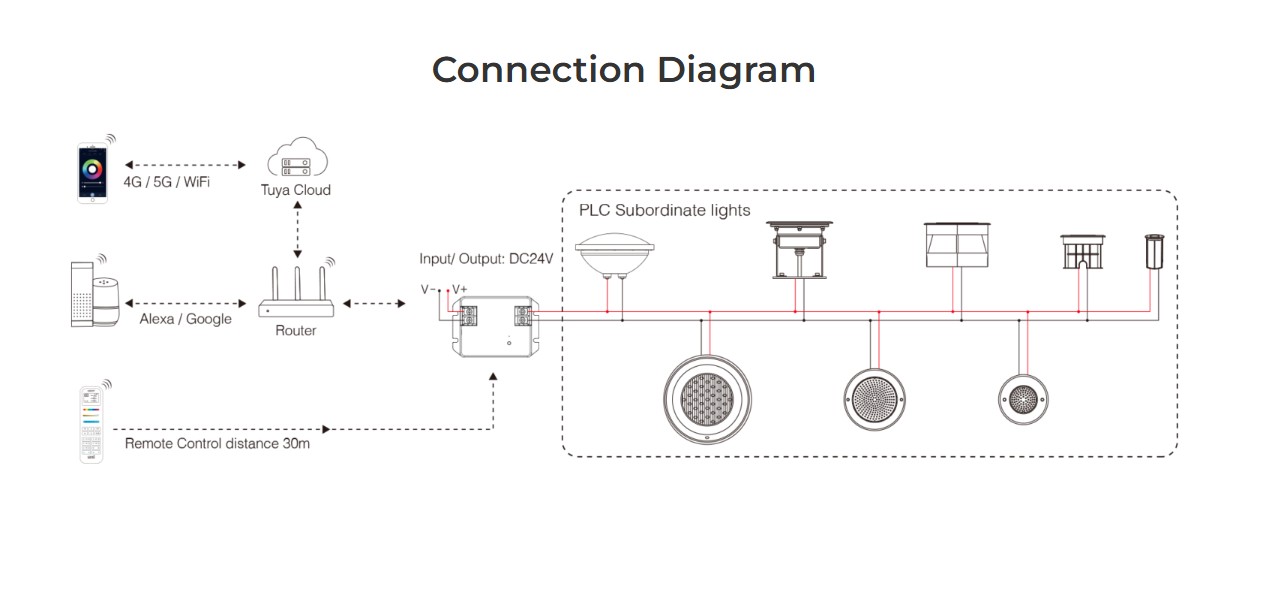

Designed by PLC control solution, simple wiring diagram and work with wifi+2.4G wireless technology to achieve smart control.
TUYA SMART APP remote control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colors for selection, dimmable for rgb &cct& brightness
- One controller max paired with 12pcs 2.4G RF remote ( control distance 30m)
- Built-in 18 dynamic mode with jumping, gradually changing ( only for 2.4G remote control)
- Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
- Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode is always consistent
- Have DND function, usually used in power failure area and save power
- Support TUYA SMART app control (2.4GHz gateway is needed)
- Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (2.4GHz gateway is needed)
| Product Name: | PLC Lighting Master (WiFi+2.4G) |
|---|---|
| Model No.: | PLCW1 |
| Input Voltage: | DC24V |
| Total Output: | Max 20A |
| Protocol: | WiFi+2.4GHz |
| Control Distance: | 30M |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC Standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
Produktmerkmale:
| Betriebstemperatur: | -10~+40°C |
| CC oder CV: | CV |
| Dimmbar: | ja, PLC |

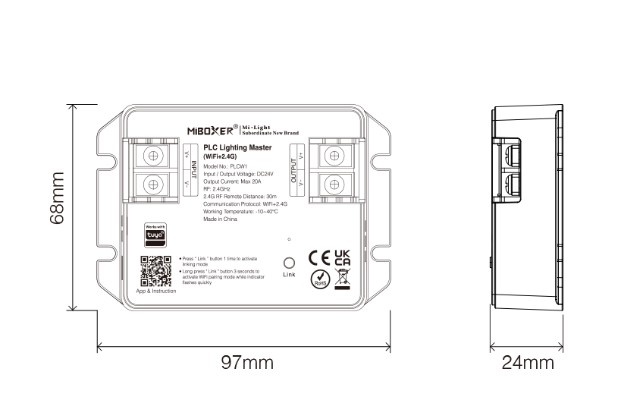

| Grösse: | 97*67*24 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäuseform: | eckig |
| LED - Gehäusematerial: | Kunststoff |
| Lichtfarbe: | RGB+CCT |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | max 480 |
